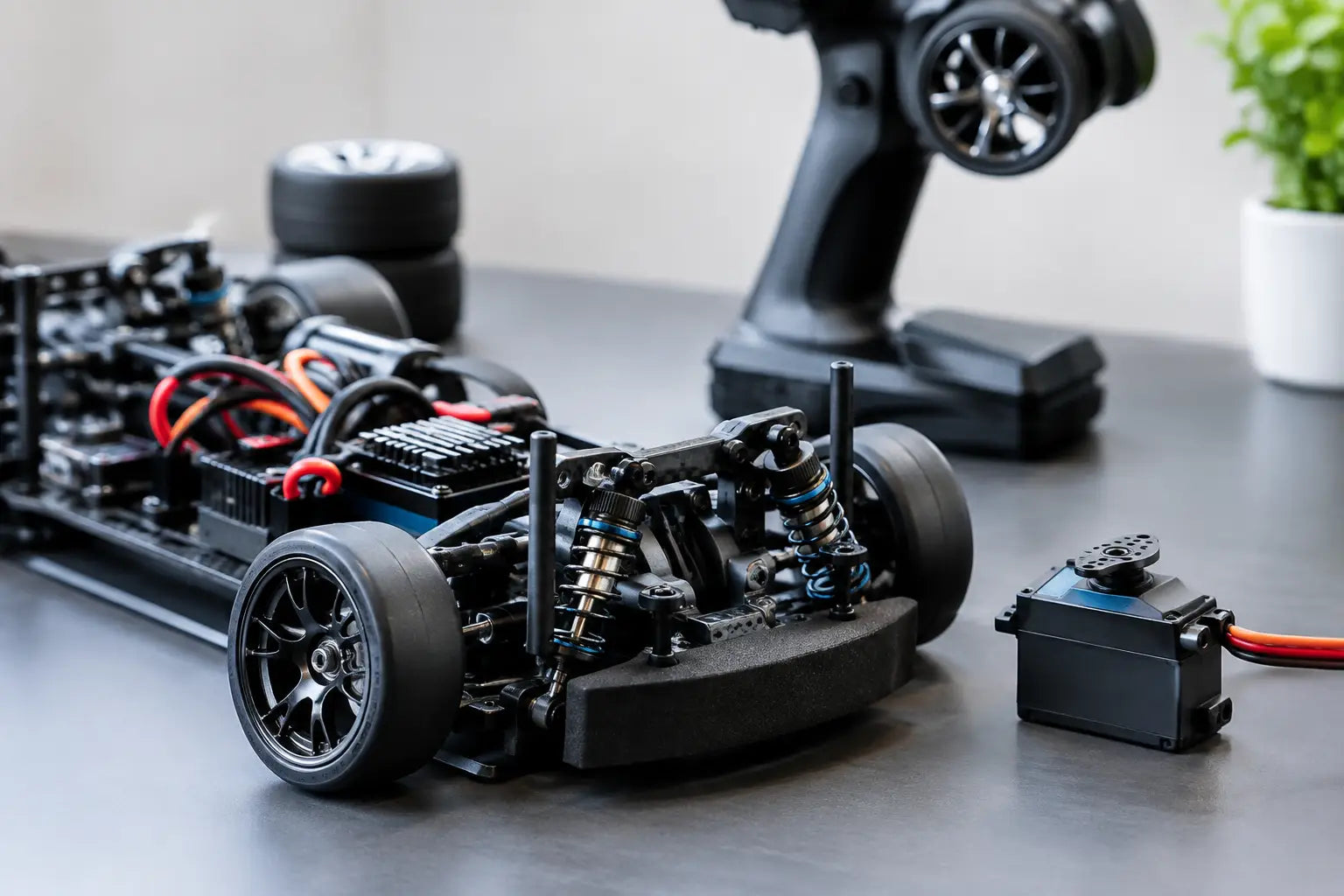

Servo Tuning Example for RC Drift and Racing

A servo tuning example is only useful when it starts with the car in front of you, not a copied transmitter screen. The same steering servo can feel precise in a 2WD buggy, nervous in a touring car, or lazy in an RWD drift chassis depending on geometry, tire grip, gyro settings, and radio setup. The goal is not maximum steering throw or maximum servo speed. It is predictable steering that uses the full available travel without loading the servo or upsetting the chassis.

This setup sequence works whether you are installing a new high-performance servo or correcting a car that feels inconsistent corner to corner. Make one change at a time, test it on the surface you actually run, and keep notes. A setting that feels perfect on polished concrete may be wrong on high-grip carpet.

Servo Tuning Example: Start With Mechanical Travel

Before opening the transmitter menu, center the servo electronically. Set steering trim and sub-trim to zero, then power on the radio and receiver. Install the servo horn as close to 90 degrees to the servo case as the spline allows. Do not use large sub-trim values to correct a horn that is one or two teeth off. A small correction is normal, but excessive sub-trim reduces equal travel from center.

With the front wheels straight, inspect the steering links, bellcranks, knuckles, and turnbuckles. They should move freely through their range. Any drag, a loose ball cup, or a steering rack that contacts the chassis will show up as vague steering no matter how carefully the radio is tuned.

Set your transmitter's steering dual rate to 100 percent for this step. Then adjust left and right endpoints independently. Turn to full lock on one side and watch the steering system, not just the tires. Stop adding endpoint when the knuckle reaches its natural limit or the linkage begins to bind. Repeat on the other side.

A practical baseline might be 82 percent left endpoint and 88 percent right endpoint. Those values are examples, not targets. Many chassis have unequal steering travel because of servo placement, rack geometry, or Ackermann. Matching endpoint percentages is less important than obtaining usable, bind-free steering in both directions.

Listen closely while checking endpoints. A servo that hums loudly at full lock is still being asked to move after the steering has stopped. Back the endpoint down a few points. Leaving a little safety margin protects gears, reduces heat, and helps prevent a race-ending brownout when the car is repeatedly driven into full lock.

Check Servo Saver Tension Before Fine Tuning

A loose servo saver can make a fast servo feel slow. A servo saver tightened too far removes the protection intended to save gears during a curb hit or drift wall contact. Set it according to the chassis manual, then verify that the wheels return cleanly to center after being turned by hand.

If the car will not center consistently, do not compensate with trim. Check the servo saver, steering bearings, front suspension movement, and tire rubbing first. Trim should correct a small straight-line tendency, not hide a mechanical problem.

Set Speed for the Class and Surface

Modern brushless servos can be quicker than the chassis can use. This is especially true with a high-voltage servo installed in a lightweight drift car or a high-grip on-road car. If your radio offers steering speed, start at 100 percent only after endpoints are correct. Drive a few laps, then decide whether the car needs less response.

For an RWD drift setup, a slightly reduced steering speed can calm initial countersteer and make transitions easier to repeat. Start around 80 to 90 percent if the car snaps from one lock position to the other. Keep in mind that gyro gain and steering speed interact. Reducing speed can make a high gyro setting feel less aggressive, but it does not fix a gyro that is fundamentally set too high.

For off-road buggy, full steering speed often works well on a smooth layout with a direct, stable chassis. On rough tracks, an overly quick servo can make the car dart when the front tires unload over bumps. A small reduction in steering speed, combined with sensible expo, may produce cleaner corner entry without sacrificing the ability to catch a slide.

Touring and on-road cars depend heavily on traction level. A high-grip carpet car may need less initial steering than the same car on asphalt. If the car reacts sharply at turn-in but pushes mid-corner, slowing the servo alone is usually the wrong answer. Check front tire condition, droop, camber, and overall balance before treating it as an electronics issue.

Use Expo to Shape the First Part of Steering

Exponential changes how much steering command is applied around center stick. It does not reduce total steering throw. That makes it useful when the car is too reactive during small corrections but still needs full lock for tight corners.

On radios where positive steering expo softens center response, begin with 5 percent. Make several controlled laps and increase to 8 or 10 percent only if the car still feels twitchy. Always verify the direction of expo on your radio system. Some systems label or apply the curve differently, and the wrong direction makes the car more sensitive around center.

Here is a realistic servo tuning example for a competitive RWD drift car: endpoints are set at 84 percent left and 87 percent right after checking for mechanical bind; steering speed is 85 percent; steering expo is 8 percent; trim is zero; and the gyro is initially set at 45 percent. The driver then tests slow figure eights, long sweepers, and a transition zone. If the car is stable in the sweeper but hesitant to catch during a quick transition, reduce expo to 5 percent before adding more gyro gain.

That order matters. Changing endpoints, speed, expo, and gyro all at once leaves you guessing which adjustment helped or hurt.

Add Gyro Gain Last on Drift Cars

A gyro is a correction tool, not a substitute for correct steering geometry. Tune endpoints, steering speed, and expo first. Then increase gyro gain gradually until the car becomes more stable on angle without fighting the driver's countersteer input.

Too little gain makes the car feel loose and places all correction work on the driver. Too much gain often creates a hunting or oscillating front end, especially down a long straight or during fast transitions. The wheels may visibly shake, or the chassis may feel as if it resists changing direction.

Begin around 30 to 40 percent gain, depending on the gyro and transmitter. Raise it in small increments. If oscillation appears, reduce gain until it disappears, then back it off another small step. Check gyro direction before driving. Lift the rear of the car and rotate the chassis left or right. The front wheels must countersteer against the movement. Incorrect direction can send a car into the wall immediately.

Use the same approach with gain adjusted from a transmitter channel. Make deliberate, small changes and evaluate one section of track at a time. A gain setting that helps high-speed stability may be too strong for a tight technical course.

Common Problems That Look Like Bad Servo Tuning

If a car jitters at center, inspect the electrical system before changing radio settings. Low receiver voltage, a weak BEC, damaged servo wire, poor connector fit, or radio interference can all cause behavior that resembles a failing servo. High-torque digital servos draw substantial current under load, particularly when endpoints are excessive or the steering assembly is tight.

If the wheels wander after a crash, check the horn screw, servo saver, steering rack, and ball cups. If steering is slower in one direction, verify equal mechanical travel and look for a bent link or a rack that is contacting something. If the car pulls only under power, the issue may be torque steer, differential behavior, or rear traction rather than steering trim.

When installing electronics in a new build, match servo voltage capability to the receiver or external BEC output. A servo rated for direct 7.4V operation may perform differently on a 6.0V supply, and an incompatible voltage setup can damage electronics. Confirm the specifications for every component before plugging it in.

Build a Repeatable Setup Sheet

Record the servo model, horn type, voltage, left and right endpoints, speed, expo, trim, and gyro gain. Also note the chassis, tire compound, track surface, and temperature. This takes less than a minute and makes it much easier to return to a known-good setup after a transmitter reset or a new servo install.

For racers, the best steering setting is the one that lets you hit the same entry point every lap. For drifters, it is the one that gives you confidence to place the car close to the clip without the front end fighting you. Start with clean mechanics, set safe endpoints, and let track time determine the final numbers.
